Status: AVAILABLE |

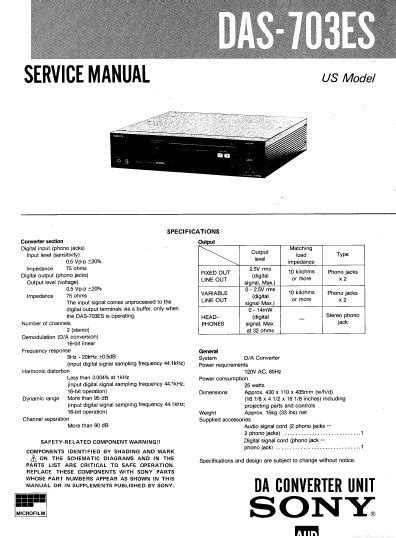

In order to read or download das-703es service manual ebook, you need to create a FREE account.
Download Now! |
eBook includes PDF, ePub and Kindle version
| ✔ Register a free 1 month Trial Account. |
| ✔ Download as many books as you like (Personal use) |
| ✔ Cancel the membership at any time if not satisfied. |
| ✔ Join Over 80000 Happy Readers |
Please do not offer the downloaded file for sell only use it for personal usage. Looking for other manual? For this no need registration. May be help you to repair. You could suffer a fatal electrical shock. Instead, contact your nearest service center. Note! To open downloaded files you need acrobat reader or similar pdf reader program. In addition, Also some files are djvu so you need djvu viewer to open them. These free programs can be found on this page: needed progs If you use opera you have to disable opera turbo function to download file. If you cannot download this file, try it with CHROME or FIREFOX browser. Translate this page: Relevant AUDIO forum topics: Sony STR-VX30L erosito Udv! Keresem a fenti erosito rajzat. Koszonom!Van nallam javitason egy Sony STR-DB940. Eleg sok baja volt de szereztem hozza doksit igy sikerult megjavitani rajta szinte mindent. A problemam a tuner reszevel van. Arrol nincs semmi rajz. Igy emlitik TM301. Ha valakinek volna errol rajza megkoszonnem. B Vectra multikormany gombok baratkoztatasa Sony fejegyseggel Sziasztok. Adott egy Opel Vectra B 1998 evjaratu jarmu ami multifunkcios volannal rendelkezik (6 db.Tokeletesen mukodik a fejegyseg es mivel o Steering Wheel ready, vagyis elokeszitett ilyen celra (Jack kijovetel), igy csak egy jack kabel kellene nekem amit osszehangolok a volanon levo gombokkal. Ugye ellenallas elven mukodik a 6 db.Egy masik rajzon is lathato a remote funkcio, ez a 36 oldalon talalhato es szinten J801-kent van jelolve. Na most a kocsi gombjaitol allitolag 2 vezetek jon az ISO csatiba, de meg nem szedtem szet a volant, szoval csak amit a neten talaltam az alapjan irom. Ha a 2 vezeteket ami jon a volantol bekotom egy Jackivel a magnoba, akkor szamit hogy melyiket hova. Elnezest ha picit pontatlan voltam helyenkent, de ha barmi kerdes van allok a rendelkezesetekre. Elore is koszonom a segitseget:) Szep estet, Csaba. UI: Elnezest, nem tudom csatolni mert 6 Mb:( A rajz errol a linkrol toltheto le.
http://www.plantarsistem.it/userfiles/excavator-repair-manuals.xml
SONY CDX-GT210 autoradio nagyon melegszik Sziasztok. A fenti radio kerult hozzam olyan hibaval, hogy a gombokra nem reagal. Elolap erintkezok tisztitasa utan elindul, de nagyon melegszik. Minimalis hangeron is majd 1A aram megy bele radio modban. Hangszoro kimenetek levalasztva, egyebkent normalisan mukodik,semmi hibas mukodesre utalo jel nincs de rettenetesen forro a hatso hutofelulet. Szabad levegon is olyan forro, ha beepitik a boxba, ott meg melegebb. Szeretnem megkerdezni, normalis az hogy ezek ilyen kalyhak? Szabi Similar manuals: You can write in English language into the forum (not only in Hungarian). All files are provided under strict licence and reproduction without prior permission or for financial gain is strictly prohibited. If you have additional documentation please consider donating a copy to our free archive. To purchase DAS-703ES spares or accessories, please contact the company via their website or visit an authorised retailer. Mutes with no input ( has a display to show ) and unmutes and gets a sample rate ( again light comes on, well 32k and 48k do bulb gone me thinks in 44.1 but makes no output regardless so pretty sure its just dead bulb there ) Relays open and close on mute and unmute on headphone and line out. So I know its getting power to the analogue section as psu measures good and there is power in some places around the analogue section. Digital must be running somewhat as it see's the signal ( various sources such as cdp and computer soundcard ) There is no audio on the headphone or fixed or variable line out. I guess I need to measure if there is any audio in the signal chain. Not sure If I can do this without a scope. I guess I should be able to measure some voltage somewhere with a test tone running on the input. Board layout is clear and I have the circuit diagram. Any advice on where to go next would be much appreciated. I know the financial gain might not be worth it but its a challange. DaveAre you able to make it work.
http://balcorhospitality.com/userfiles/excavator-service-manuals.xml
Please let me know. Best regards RenjishI would be very interested to hear more.Resources saved on this page: MySQL 15.79 vBulletin Optimisation provided by. This item is an OEM service manual which contains the manufacturer's service data that they release to repair centers. These may contain some detailed drawings, diagrams, schematics or parts list provided directly by the manufacturer at their discretion. Das Kabel sollte in der Nut fixiert sein. Netzstecker aus der Steckdose. Devices found on the IP tab can be controlled directly from the app. Devices shown on the IR and Serial tabs, including many older AV devices, require the use of an adapter for control. Devices listed below can be controlled when the device and the app are on the same network. No adapters are required. A key advantage of IP control is that devices often provide feedback to the app. Additional device support can be added to Roomie Remote by advanced users. Skip to content rrbw2 Features Compatibility Compare. Get the App. An active subscription is required for IR control. Devices not listed below may be learned from your original remote using the built-in infrared learning feature. The Serial cable can be configured into all modes and genders. See below for information on the type of cable your device needs. See this FAQ for more information. See Setup Guide - Alexa Integration. Surface Mount Buttons. Use X or X Grandfathered users for now retain Nest access. Indigo Server. Hub Model Radio RA 2 best controlled via the Lutron device. Hue Hub V2 Hue Hub Supports Device Triggers. See the SmartThings Setup Pack. AutoDiscovery Includes keyboard Includes microphone support to send voice commands. Media Guide. Some services such as Spotify require initial content start from the Spotify app. Special commands such as. Keyboard included. DSPeaker Anti Mode 2. Hama Photo Frame with Weather Station Moome Barco FullHD 1. Screentechnics Motorized Screens Code Group 1. Integra DSX-3 6.
Krell Evolution Processor Preamplifier. Lexicon All Preamplifiers and Receivers Zone 2. Musical Fidelity A3. Perreaux Eloquence Series Integrated Amplifiers. Cisco Explorer Series Cable Receivers. Digiturk Digiturk S Satellite Receiver. Golden Media Mania Terrestrial Receiver. Metronic Zapbox HD-S1. Miraclebox Premium Mini Satellite Receiver. Procaster Terrestrial Receiver Code Group 1. Vmedia Code Group 1 qwerty Keyboard Remote. Zgemma Star H. Straight Through — Requires Simple Cable — Serial 3. Wij controleren de vraag en zonodig wordt deze verwijderd. Bijvoorbeeld antisemitische inhoud, racistische inhoud, of materiaal dat gewelddadige fysieke handelingen tot gevolg kan hebben. Bijvoorbeeld een creditcardnummer, een persoonlijk identificatienummer, of een geheim adres. Als er een antwoord wordt gegeven op uw vraag, dan is het voor de gever van het antwoord nuttig om te weten als u er wel of niet mee geholpen bent. Wij vragen u dus ook te reageren op een antwoord. Antwoorden worden ook per e-mail naar abonnees gestuurd. Laat uw emailadres achter op deze site, zodat u op de hoogte blijft. U krijgt dan ook andere vragen en antwoorden te zien. Wunschpreis eingeben. Bering. It may not display this or other websites correctly. You should upgrade or use an alternative browser. This is a very rare piece. It was the first consumer DAC sold in the US. There isn't alot of info available on it but it seems to be well thought of. It was a no-corners-cut piece, and a lot of the stuff in it went into the DAS-R1. Some sources say that it even exceeded the DAS-R1 in terms of spare-no-expense detail. It uses the Burr-Brown PCM53JP DAC, which doesn't quite have the cult following of the TDA 1541 S1 but is still considered one of the best early DACs. Build quality is phenomenal. As you may know I am no stranger to Sony ES gear from its golden era and this outstrips them all. It has a rock solid feel, all exterior panels are milled aluminum, even the lid.
Inside it is the cleanest piece I have ever seen. The cover lid sealed in a near-hermetic fashion. It looks like it was built yesterday. All electrolytics are Elna Cerafine, and are very high voltage for a line-level component. Main smoothing caps are 71V 2200uF (x4) and the analog board caps are 330uF 100V. Cosmetic condition is near mint, with just a few dings on the edges. The glass window on the front looks great. Interestingly it looks a little different inside than I expected. It only has one transformer- all the pictures I have seen have two transformers. The main coupling caps are yellow cylindrical film caps, not the rectangular caps seen in other pictures (although actually there appears to be a lot of variety to those caps, judging by the pics). The board is clearly designed for a large film cap in this spot and I'm going to have trouble resisting the temptation to replace them with Mundorf MKPs or similar. How does it sound? No idea - haven't hooked it up yet. I probably won't untill the Christmas tree goes, as it is hard to get to the stereo with the tree where it is. It powers up and I was told it is in perfect working order. Anyway enough BS - time for the pictures. Sorry for the quality - I'll try to take some better ones: Analog out board -- I believe it is discrete: Power Supply: Copper shielding over the digital section.Click to expand. I'll be using it with an Apple Airport Express streaming Apple Lossless files. Only hitch is the Airport only outputs toslink and the DAC only accepts coax, but I have a Midiman CO2 to handle the conversion.Click to expand. Isn't Apple Loss-Less a special format?Isn't Apple Loss-Less a special format. Click to expand. The 32 kHz is nice because I have a DAT deck that can run at 32 kHz in long play mode. But it's really nice that it can handle 48 kHz since a lot of stuff outputs at that rate.Sorry, no service manual but scanned specifications and the advertising blurb.Any recommendations for 8-9V lamps.
I broke down and paid for the service manual. It has several tantalum capacitors. Should they be replaced?I've seen them in the phono section of a Marantz receiver (which sounded fine) but never tried to swap them or do a before-and-after comparison. Otherwise, they have many good characteristics so unless they carry audio signal, I wouldn't even consider changing them. If they are, then play away.I would change them. Should take a few minutes. If they are small value you can put in Panasonic stacked films.I don't want to pull mine out to see, but I think mine has two sets of digital ins and outs. The 702, as I understand it, was sold only bundled with a matching transport, which I don't have. It's still a good DAC, and I think you'll find the 703 can still run with the big dogs.They look like 4mm 8v lamps - I sent an email to AK'er DGWOJO - hopefully he can hook me up. The service manual describes a bias adjustment. I want to check it but the bias test points have been shorted with solder. So I guess I will leave it alone. Clearly there has been some work done - the audio out board has been resoldered (very common in my experience) and there are some film caps soldered onto the fixed output jacks in parallel. Not sure what they are there for - I am trying to decide if I should remove them or not.So I'm thinking this was some kind of mod applied by US Service centers prior to sale for some reason. I'm now getting low level crackling sounds from this thing. Both speakers. I can hear it from the built in headphone jack too so I know it's from the DAC and not anywhere else in the chain. Any ideas? Since I'm hearing it in both channels I'm thinking maybe power supply, since the output stage is basically dual mono?It was caused by the DAC not syncking properly to the input signal. I traced it to the shielded digital box. The soldering wasn’t very good so I resoldered it completely. Since the component side had been covered with some kind of wax it was a bit of a hassle.
Some of the wax found it’s way to the solder side of the PCB and had to be removed before resoldering. Besides tired electrolytics in the PS it’s worth it to take a look at the soldering as well, especially parts that heat up like transistors that are mounted to heatsinks. Good luck! Karsten The Netherlands. The stands were upped as well with a slab of rubber glued onto massive ceramic powder feet. As noted by many, the amazing sound quality results not so much from the technologies used but by the care and absolute perfection in build-quality and choice of components. That's very Sony, be it in the pre-Esprit, ESPRIT or R series: we're in this for the music, not the technical tour-de-force or outer-space specifications: like a TA-E88B, a TA-N902 or a TA-ER1, the 703ES reproduces l i v e m u s i c. A real 703ES here; nudies of a (modded) USA 703ES here. Before him was a pilot Sony DAS-702ES - this is the first DAC in the world, on which Sony run in some technologies to implement them in the Sony DAS-703ES. In general, the model for the company was a landmark, Sony DAS-703ES had to defend a blow from the adherents of analog sources, to prove the full and unconditional advantage of the new digital recording format. When developing the DAS-703ES, Sony fundamentally did not make compromises and did not spare funds, introduced unprecedented technologies. Even in later and more famous models, such as Sony DAS R1, Sony DAS R1a and Sony DAS R10, not such a large number of exclusive elements and specially developed technologies were used. The Sony DAS-703ES is assembled, as most Japanese vintage Hi-End devices of those years are monumental and reliable, the front panel is made of a single 4mm sheet of milled aluminum with a special coating. For people without sports training, it is better not to take the device in your hands, you can get a spinal injury, the device, despite its modest size, weighs like a weight.
Digital and analog circuits with separate power supply and reliable shielding. Two separate power supplies (toroidal transformers in copper screens wound with oxygen-free copper wire with linear crystals) with a tenfold power reserve, such as, for example, a 2x100W power amplifier, are used. Such a power margin removes dynamic constraints and provides deep and detailed bass, which does not affect interference at high frequencies. The power supply also uses exclusive electrolytic capacitors, in which electrolyte microparticles of ceramic powder are dispersed in the electrolyte. Such capacitors significantly reduce noise and interference. Shielding power supplies, digital and analog circuits, the owners of the Hi-END technology are not surprising today, but Sony has used not only powerful screens in the DAS-703 ES, but also all internal wiring and PCB shielding. All the tracks of printed circuit boards are covered with a special substance that prevents the effects of electromagnetic waves (and how will they penetrate there through a 3mm aluminum case and a lot of internal screens.? But Sony apparently decided to play it safe). By the way, the tracks of printed circuit boards are made of increased section of oxygen-free copper with linear crystals. A digital signal is fed to an analog board using an optical transmission, it ensures high purity of music playback, eliminates turbidity and signal distortion, and also causes galvanic isolation of digital and analog circuits. To combat jitter, Sony engineers for the first time in the world developed a Phase locked loop (PLL) system and a jitter tracking system. The automatic control system adjusts the frequency of the controlled oscillator so that it is equal to the frequency of the reference signal. Adjustment is due to the presence of negative feedback.
The output signal of the controlled oscillator is compared on the phase detector with the reference signal, the result of the comparison is used to tune the controlled oscillator. Thus, the Sony DAS-703ES is practically not sensitive to the amount of jitter in the input signal, which expands its scope of application (from portable devices to computers and DVD players.) Burr-Brown PCM53JP-1 chips were used as a DAC in the device, which were selected manually according to the characteristics for creating a stereo pair. Further, exclusive tantalum capacitors and resistors with gold legs are used in the circuit.The analog output was implemented on the newly developed Sony double-gate memory transistors. These transistors had at that time not attainable current-voltage characteristics, which made it possible to improve the intelligibility and detail in the medium-high frequency range. All connectors of the device are gold-plated, the variable output is made on a high-tech Alps potentiometer. The Sony DAS-703ES used a lot of exclusive components that are used only in this device, you can write a whole book about its technical equipment, in Japan the website is dedicated to 703 and there is a club of fans. Digital converter: 16-bit linear Digital Inputs: Coaxial Sampling Frequency: 32, 44, 48kHz Frequency response: 5Hz to 20kHz Dynamic range: 95dB Channel separation: 90dB Total harmonic distortion: 0.004 Line output: 2.5V Dimensions: 430 x 110 x 435mm Weight: 15kg Year: 1985 Manual - in complect, service manual - via e-mail. This item is being sold in our shop in Europe.Therefore, please kindly take note that it could be sold out when you purchase it because of the timing of updating our stock information.Appreciate your understanding though we try our best to update it on time. Please contact me before you pay for the item.You are the light of the world. Consumer Electronics, If you follow any of those links and end up acquiring a manual, it will not be from us.
Here is why we may deserve your business. We love our Vintage Audio and other built-to-last electronics equipment in an age of disposable products for a throw-away society. We might sell the kids before our classic silver Pioneer or Vintage Marantz, Kenwood and Sansui gear. If you also value High Quality Manuals that enhance the ownership satisfaction of your vintage audio treasures, you found the right place. (continued below.) It IS Our Guiding Principle Add Site to your Favorites Other sites we host: Phase Linear History Vintage Technics Database We sponsor two free Yahoo Audio Groups We are meticulous and give genuine best efforts to produce clean, well-constructed manuals for you. A side-by-side comparison of our reproduction manuals with those from many other vendors will usually reveal an overall better appearance, construction, and print quality. Sometimes strikingly so. Our Customer Comments page is a fraction of what we receive from real customers and electronics technicians. The vast majority of our printed reproduction manuals are Very Good to Excellent on our Guaranteed Quality Ratings scale. But every single item is not and we refuse to give a false impression that they are. We want you to see a detailed description and individually-assigned quality rating before you purchase. This time-consuming extra service is almost never provided by our competitors. Customer complaints are nearly zero, perhaps one per 500-1000 sales. We believe that virtually none of our competitors could truthfully make a similar claim. We are a USA based family business operating old-school style. That means real people trying to serve you as if we were a walk-in store in your local neighborhood. We always combine shipping on multiple-item orders and do not rip you off on shipping charges. If interested, check out About Our Manuals and other site sections with the menu links at the top of all pages.
If you would like for us to be here in the future, you can help by telling your friends and by sharing links to our site in your discussion groups, forums, blogs and web sites.We have been slowly updating these manuals lists over the years. As time allows we will replace the spare Factory ORIGINAL Manuals Catalog section with the same page format as these here in the reproduction manuals section. We also have more than 400 Gigabytes of various manuals, schematics, brochures, etc in (mostly) PDF format. They number perhaps 400,000 files. Truth is that we may never get them listed on our site. But they are available. Click here for further PDF manuals informatiion. If an item has a description and Price Code, then CLICK THAT PRICE PRECISELY identify the item you want with company brand. If you want multiple Whether your email is to order Tell us EXACTLY You may findIndividually-assigned If an item has a description and Price Code, then CLICK THAT PRICE PRECISELY identify the item you want with company brand. If you want multiple Whether your email is to order Tell us EXACTLY You may findIndividually-assigned It makes a difference. Seekers of truth mayImages may be used with. This first DAT recorder proved very popular with both studios and musicians enabling them to produce their masters, ready for sending to the CD pressing plant. Although it was not perfect, the DTC-1000ES was modified by several companies willing to improve on it's already impressive abilities.The XD-001 was identical to the DTC-1000ES except for the faceplate. And now, DAT (Digital Audio Tape) recorder, the second generation of digital audio recording equipment has been released. Excellent sound quality. The audio signal is recorded and played back with the PCM (Pulse Code Modulation) system. Smaller cassette Writable sub codes. With this deck, the following sub codes can be written or rewritten without affecting the PCM audio signal section. ?
Start ID (code indicating the beginning of a selection). Program number (indicates the order of a selection). Skip ID (code for skip operation) High-speed search Skip operation When a DA converter unit (such as the Sony DAS-702ES or DAS-703ES) is connected to this digital output, digital sound reproduction will be enhanced. Four DD (direct-drive) motors for higher reliability. These motors enhance the reliability and provide higher stability over extended periods of use. Multi-functional counter Linear tape counter. Remaining time ? Elapsed playback time Easy-to-read multi-mode display Program number (indicates the order of a selection). Skip ID (code for skip operation). I had to do a minor repair - some lamps were burnt out. Parts are coming today. Not sure why - maybe to bring the highs down a little. Anyway I'm probably going to snip them. I should be getting it into my rack tonight. That's great! I can't wait to hear your impressions of how this very rare Sony DAC sounds. From the Japanese website- DAS-703ES has become a layout that has been almost equally divided into three parts by the power supply unit analog digital unit, it has become a construction along the signal flow is simple.In addition, the digital portion is housed in the shield case, for data transmission to the analog section is adopted as the transfer optical system with light from a digital unit. Are prevented from degrading the sound quality digital circuit is an analog circuit to interfere with this. In order to maximize the goodness of separate digital systems, are summarized in a small scale of a digital circuit. Digital circuit is composed of oversampling digital filter circuit and a main data demodulation. Being processed (CX-23053) pieces in 1 LSI has been developed for data demodulation decoder.In addition, the digital filter is adopted (CX-23034) LSI. This LSI has excellent properties as a filter attenuation of more than 80dB.
To generate the clock generation circuit has adopted the double PLL clock precision. Clock and data necessary for demodulation circuit digital filter must be accurately follow even if jitter is included in the input signal. However, since the time axis of the analog output signal, the clock for the sample-and-hold circuit must follow to prevent the jitter.The double-precision PLL PLL which combines two different types of tracking for analog nature of PLL and non-PLL jitter for jitter in digital tracking-type DAS-703ES to consider these points. To transmit data to the analog circuit has adopted the method of optical transfer using (photocoupler) optical transmission element from the digital circuit. I have various distortion and noise reduction due to ground currents thereby. If you enter a parallel 16-bit data in the ladder, the current corresponding to each bit is made first, taking the sum of the net through a resistor ladder then called. Are using a type of current output in DAS-703ES. Parts can be used upon a firm with large compared to the voltage output type using the internal resistance of the IC, which are designed to serve the following sample-and-hold circuit voltage conversion itself. So that the single-stage amplifier has virtually eliminated by this, I'm getting a higher quality and more freshness. I have carried the direct sample-and-hold circuit. The analog low-pass Butterworth filter has adopted the following seven types of active filters GIC. Output of the analog filter is output through the output amplifier circuit combined de-emphasis. Output amplifier DAS-703ES has adopted a combination power circuit MOS FET buffer with large current capacity on the output stage, a cascode dual FET that does not generate distortion capacity in the first stage, and high quality massive enough I have won the mid and high ranges. The chassis is a tough thing and bound material reasonably structure the units of sufficient thickness and strength.
In addition, an insulator is adopted a structure that combines the rubber vibration suppression ceramics and non repulsion. Is adopted as a power-source part dedicated to each of the large-sized transformer for analog circuits and digital circuits. Analog has become a core volume of about 100W power amplifier can be made. Also, digital is a little small, I have the capacity to cover the entire ordinary CD player. Electrolytic capacitor electrolytic capacitor is adopted as distributed ceramic powder. This capacitor improves the sound quality by active movement of noise in the electrolytic solution by dispersing the fine ceramic powder in the electrolyte. The printed circuit board substrate is adopted ES. A resist film on the common printed circuit board has been to increase the capacitance between the patterns, which have influence on the sound quality. ES board is removed between the resist pattern and the pattern has been to ensure the quality with slight distortion and hardness. Has been adopted for the acoustic resistance is the resistance of molded resin. We have been to provide enhanced vibration and improve sound quality by a hard resin molding element carbon film resistors with gold-plated cap. If you are using the excellent resistance to sound quality and large, the GIC filter NFB circuit in DAS-703ES, we are working to improve sound quality. Terminal is equipped with a Digital Rec out pin and dedicated input pin, such as Digital Tape DAT. DAS-703ES is designed to lock the PLL is also to any type of sampling frequency in the range of from 48kHz 32kHz. Sony H-9 MaxxPix It is a 100V model, probably for the Japanese home market.I will be looking fora step-down transformer so I can try it out. It is a 100V model, probably for the Japanese home market. This one has dual transformers and the stock potted film coupling caps. I will be looking fora step-down transformer so I can try it out.. Congrats. When it rains, it pours.
The gentleman found a very good home for the DAC.It is a 100V model, probably for the Japanese home market. Mark- Will you need to make any modifications to the power supply to run it on our 120 volt power grid. Sony H-9 MaxxPix It is a 100V model, probably for the Japanese home market. Mark- Will you need to make any modifications to the power supply in order to run it on our 120 volt power grid. Sony H-9 MaxxPix Sony H-9 MaxxPix Maxx - I will not do any internal modifications. I work with several people from Japan and one of them is going to loan me a 2 kVa step-down transformer. Mark Mark- You are very fortunate to have this 2nd 100 volt Sony DAS-703ES DAC. I do not think that it is a coincidence that the major companies licensed to produce and distribute OCC Copper and Silver products like Neotech, Acrolink and Furutech are all Japanese. I am certainly not saying that you need an OCC Copper power cord to run your new 100 volt high end Sony DAS-703ES DAC which was made for the Japanese market, but if you could make up a power cord with Pure Copper AC Plugs it may go a long way towards enabling it to give its best performance. Sony H-9 MaxxPix.
