I found, for example, that resistor R8 (removed from the circuit) went from 560 ohms (marked value) to 620 ohms (measured). I understand from people on the Internet that this is caused by moisture intrusion into the resistors. I could not get the voltage values that were on the schematic - they were off a small amount but this indicated to me that all nine of the resistors needed to be changed. Instead, what I found was that the tunnel diode bias voltage was changed so dramatically by the faulty resistors that the tunnel diode was no longer biased properly. I decided to measure the tunnel diode but this is not easy because the measuring instruments add a great deal of error at these low voltages and currents. Tunnel diodes, especially germanium, are getting very hard to find and are expensive. I suspect the F0 was greater than 1 GHz and the capacitance less than or equal to 50 pF. The coils use RCA jacks and for some reason they have corroded badly. I found the best way to clean them was with a soft eraser which removes the crud without removing the finish. I had to cut an eraser to fit on the inside of the RCA jack. I found one of the coils had a broken wire in it and I suspect that is not going to be easy to fix. The coils appear to have been pre-made and not part of the kit, as each coil has been dipped in a different-colored hard material with the RCA connectors epoxied on. This allows the sniffer to fit over the top of each coil. The sniffer, when placed around a Tunnel Dipper coil, outputs a signal level of around -50 dBm on my spectrum analyzer. Your findings echo mine in that replacing all nine composition resistors is likely all that is needed to rejuvenate a Heathkit HM-10A Tunnel Dipper. I had found a copy of the Heathkit Tunnel Dipper manual on the Web and it included a circuit diagram with indicated voltages for a 50 deflection. For instance the voltage on the meter at 50 deflection should be 0.3 volts.
http://ivplanet.ru/userfiles/canon-powershot-sd1100-is-digital-camera-manual.xml
That made sense since the current through the meter went to ground via a 560.That meant that the 0.5 volts was being grounded through 1000 ohms, not 560 ohms. I did a Google search and found that composition resisters, which is the kind used in the tunnel dipper, can significantly increase their resistance if they are exposed to dampness or high humidity. I decide to replace the resistor. Therefore, I had to determine my own way of taking the tunnel dipper apart to get at the circuit board. I started to unsolder the meter connections but found it difficult to do and ended up cutting the wires. I reasoned that, once I had the thing apart, it would be easy to solder in new wires. The knob on the tuning capacitor was easy but the one on the sensitivity control was not. Its set-screw seemed to need a very small hex wrench but the one I tried seemed to fit O.K. but slipped. I then found that I could undo the screw using a very small flat screwdriver. The tuning capacitor shaft also had a nut and locknut that I removed. The casing could then be slipped off the tuning capacitor and sensitivity potentiometer shafts. Therefore, a proper job might be to replace, or at least check, the other eight. However, that would probably mean removing the circuit board which involves unsoldering the variable capacitor. Instead, I decided to leave that as a future project. Once again a 560 ohm resistor was reading much too high. This is the second time an in-circuit reading has come down considerably over a day or so, so maybe running the tunnel dipper is bringing the resistors back into spec. Today I also measured the actual bias and got 110 mV with the “Diode” switch setting and 108 mV with the “Oscillator” setting so the calculated and measured voltages are in agreement. The bias is a little lower than design but not significantly so. In excellent condition- sold as is pictured- see photos. Shipping to USA only, excludes shipping to Hawaii, Puerto Rico and Alaska. Verisign.
https://www.becompta.be/emploi/bosch-logixx-washer-dryer-manual

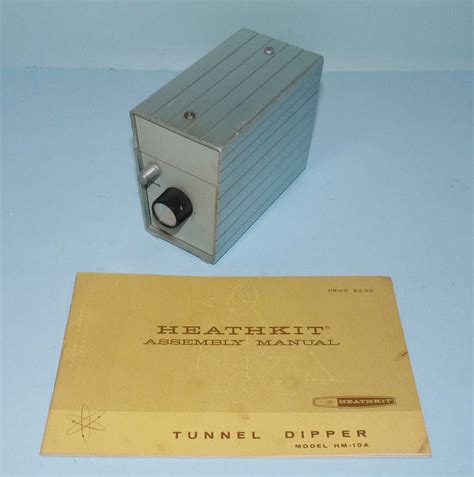

Payment or arrangements for pymt within 3 days. Paypal pymts ship to address provided by paypal only, no exceptions. If you don't want to use paypal, just email me for other arrangements. Items ship within 2 days of cleared payment, excluding weekends. Import duties, taxes, and charges for any country are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. Please email any questions. All items are Sold As Is, No Returns. Books Audiobooks Magazines Podcasts Sheet Music Documents Snapshots HEATHKIT Tunnel Dipper Hm-10a Uploaded by Edd Whatley 0 ratings 0 found this document useful (0 votes) 83 views 42 pages Document Information click to expand document information Description: Construction info for the Heath kit model HM10a Tunnel Dipper. Report this Document Download now Save Save HEATHKIT Tunnel Dipper Hm-10a For Later 0 ratings 0 found this document useful (0 votes) 83 views 42 pages HEATHKIT Tunnel Dipper Hm-10a Uploaded by Edd Whatley Description: Construction info for the Heath kit model HM10a Tunnel Dipper. Full description Save Save HEATHKIT Tunnel Dipper Hm-10a For Later 0 0 found this document useful, Mark this document as useful 0 0 found this document not useful, Mark this document as not useful Embed Share Print Download now Jump to Page You are on page 1 of 42 Search inside document Cancel anytime. Share this document Share or Embed Document Sharing Options Share on Facebook, opens a new window Share on Twitter, opens a new window Share on LinkedIn, opens a new window Share with Email, opens mail client Copy Text Skip section Trending The Duke's Shotgun Wedding Stacy Reid The House We Grew Up In: A Novel Lisa Jewell Rich Dad's Cashflow Quadrant: Guide to Financial Freedom Robert T.
http://churchoftheresurrectionacc.com/images/bush-dvrhs02-dvd-recorder-manual.pdf
Kiyosaki Cinder: Book One of the Lunar Chronicles Marissa Meyer The Black Ice Michael Connelly City of Lost Souls: The Mortal Instruments, Book Five Cassandra Clare Yikes, Stinkysaurus. Pamela Butchart Red Queen Victoria Aveyard Panda Bear, Panda Bear, What Do You See. Browse Books Site Directory Site Language: English Change Language English Change Language Quick navigation Home Books Audiobooks Documents, active Collapse section Rate Useful 0 0 found this document useful, Mark this document as useful Not useful 0 0 found this document not useful, Mark this document as not useful Collapse section Share Share on Facebook, opens a new window Facebook Share on Twitter, opens a new window Twitter Share on LinkedIn, opens a new window LinkedIn Copy Link to clipboard Copy Link Share with Email, opens mail client Email. It may not display this or other websites correctly. You should upgrade or use an alternative browser. I had picked a Millen 90651 grid dip meter also. What are the differences between a tunnel dipper and a grid dip. Thanks JohnThe Tunnel diode is a pretty rare device, It operates on the principle of negative resistance. Here is a link to the tunnel diode, and a dozen other types of diodes: RegeUse it with the care and respect it deserves. I bought a used one about 30 years ago at a hamfest, and it still gets frequent use.Use it with the care and respect it deserves. Click to expand. I have both a GD-1A and GD-1B as well as the Millen 90651. The best GDO that I know of is the old Measurements Model 59. I had one back in the 1970s but it went along with the business when I sold my interest. Glen, K9STHI need to reduce the volume of my stuff, cannot afford to keep all, so I was thinking that the reduced size and being battery operated would work better for me, I have had a chance to really work with these yet, but had found lots of reference to GDMs chasing technical articles, and always accumulate tools to work with whatever I get into.
Thanks JohnThe dip was so tiny they had to amplify it which made the settings very touchy. You couldn't even sweep one freq range without constantly resetting the sensitivity control. I sold it to a guy who was familiar with the problem but still wanted to buy it. I would not buy another. Maybe the design has been improved. I now have the Heath GD-1A tube type which works well. Just a caution. TOM K8ERV Montrose ColoThat is why I also have the Millen. Glen, K9STHMy experience is that the power output is a little lower than optimum which makes some readings more difficult or impossible. I gave it away about five years ago because I found that I mostly used my tube grid dip meter. I have used various grid dip meters, but have not found a better one than the Measurements instrument. An MFJ 259 may be used as a dipper with some additional parts. W8JI has info on that I believe, since he wrote the 259 manual for MFJ. 73, TerryRegister for a free QRZ account. By continuing to use the forum you conform your acceptance of these. If you are not happy to accept these you must stop using the forum and delete our cookies from your browser. It was made in the early 60's, used a tunnel diode (TD) with no useful ID as the oscillator and 3 Ge transistors as a meter amp, all running from single AA battery. Although TD's went out production a long time ago in the West, there are lots of Russian TD's for sale on line. I'm unsure as what significance to put on these designations; what would be the major difference between them. One parameter that would come in to play in an oscillator circuit would be the capacitance of the diode and quoted values of 10-20pF seem common. That value will obviously limit the upper frequency limit. Anyone got any insights on this? BRe the Wiki page, I see that there is a lot of data on this page.
BANGTAIPVC.COM/upload/files/brita-water-filter-manual.pdf
When you compare the specs of the switching, amplifier and oscillator diodes, the latter seem to be running appreciably higher currents, and have somewhat lower capacitance. All that said, looking at some web pages today, the recurring story seemed to be that Heathkit's Tunnel Diode GDO was not very good (though very neatly designed and assembled). People seemed content with the valve and transistor Heathkit GDO's but the TDO is typically described as not being very sensitive. Consistent with previous threads on this Forum, there are aways lots of very favourable comments to be found about the valve GDO's made by Millen and Measurements Inc., the latter using an Acorn valve. BI?ll ask him to post about it here. Not sure he will as he?s allergic to his PC. AFAIK his dipper doesn?t work. This might be in line with your point about them not being very good. I?ve had a large number of tektronix scopes with good tunnel diodes in them go through my hands over the last couple of years. I have played with some surplus tunnel diodes on occasion and found them to be tetchy and difficult to drive. My experiments were mostly limited to attempting to use them as pulse generators however and plotting the curve of one. I?ll leave the latter here as it was interesting: That and other reports suggest that all of the old composite resistors have drifted in value and must be changed. The three transistors in the meter amplifier are mounted in sockets, so can easily be removed and checked. The Youtube vid suggests one of them may be best replaced (very leaky) with something more modern to improve performance. The need to have three transistors in the meter amp maybe suggests that the oscillator is not really up to the job. Makes you wonder about the particular tunnel diode that was selected; could another component do better.
Of course this leads to the thought that perhaps a better tunnel diode (there lots of Russian ones to consider), together with a modern amplifier chip for the meter, could be an interesting project.Have some fun! If the intent is to create a GDO, then don't bother. The heathkit ones proved that though it could be done, the end result's performance was seriously disappointing, and not good enough for most day to day uses. On the other hand, there are much superior dippers using valves, bipolars, FETs and even the triode part of a magic eye has been pressed into use. Take your pick. DavidI also have a small solid-state vibrator board which I'm hoping will allow it to be run from a 12V SLA if it needs to be used outside. So, that's my route to a 'super' GDO. The TDO is more of a curiosity which breaks out like a rash now and then. BPerhaps the marketing folk at Heathkit won over wiser counsel and felt that the use of a TD would be a useful USP, regardless of whether there was genuine merit in their use.It was made in the early 60's, used a tunnel diode (TD) Also the negative resistance region makes for a great 2 terminal oscillator.There, sitting on the mantelpiece in the G3RJV shack was a little Tektronix unit. I was doing the power supply and re-laying the trigger circuits (sampling scope triggers need to be fast compared to the fastest input signal). I knew they were just about to order a nice, new Tek tunnel diode pulser for the test setup for the new scope. Now at HP or Tek, having to buy something from the other always rankled a bit Bill, Dave and Howard Vollum were quite friendly, but there was a degree of competition at lower levels. I took the little TEK risetime calibrator north with me. It was working and easily calibrated. So there was the matter of fair payment. George didn't want anything for it. He'd only paid a few quid, he said. It was just a small piece of old, surplus, test equipment.
If he didn't want money for it, would he accept some different surplus test equipment for it? asked HP. They'd offered whatever the second hand market value was - half Tek's catalogue price. George wasn't having that.So I wound up making another trip to Rochdale. In the back of the Land Rover was an older model HP spectrum analyser from the surplus equipment collection, all checked and calibrated, complete with 110MHz and 1250MHz plug-ins, tracking generator, and storage mainframe. Quite a nice setup for an amateur radio shack, and the older style units with one knob per function are a lot easier to learn on. George was flabbergasted. So that's how a Tektonix tunnel diode unit, found in the study of an English vicarage wound up calibrating new oscilloscopes destined for the (then) latest automated test gear racks of the US navy and other HP customers. That 4-channel scope was an HP catalogue item. And if you look at the picture of George on the inside cover of SPRAT, in editions from the mid 90's onwards, you'll see behind him the HP spectrum analyser etc in the huge array of radio gear that hid one wall of the G3RJV shack. Real life can outdo fiction. My jaw dropped when I saw that little box on the mantelpiece. Jaws dropped at HP when I told them. George's jaw dropped when he saw what 'a bit of useful test gear' meant. It was a pleasure to have known George, and I miss him greatly. DavidTunnel diodes were used in several Tektronix fast pulse generators, and in the trigger circuits of 'scopes and plugins. Anyone who has tried to get reliable triggering on a 7T11 sampling timebase will know how twitchy these can be. Before the fastest TD in a 7T11 went obsolete, Tek was charging USD800 for that TD. Leo Esaki won the 1973 Nobel prize (with Ivar Giaever and Brian Josephson) for electron tunnelling. For a while it was known as the Esaki Diode, before Tunnel Diode stuck. In a sense it is rather sad that they went obsolete not long after he won the Nobel.
BANGLENHOSPITAL.COM/UserFiles/File/brita-water-filter-jug-manual.pdf
If fast rise pulse generators are your bag, Leo Bodnar sells 30-40ps rise time pulsers for ?50 to ?100 (depending on connector). You set the pulse amplitude via the USB connection from which they derive power. They even come with a calibration certificate. I have one of his BNC ones, since most gear that I use uses a BNC. CraigExcellent company and products. 800 USD for a single TD. Wish they were worth that now. I have 20 of the things I got in a lot off eBay. Unfortunately not exotic ones but 4xx trigger ones.Also of note a tunnel diode can be deployed in reverse as a detector for low level RF and in this application they act as a zero forward voltage drop detector. I have tried this in my workshop when I was trying to make zero forward voltage drop detectors. Voltage drop free RF detection has applications in making a good RF probe. This amount is subject to change until you make payment. For additional information, see the Global Shipping Programme terms and conditions - opens in a new window or tab This amount is subject to change until you make payment. If you reside in an EU member state besides UK, import VAT on this purchase is not recoverable. For additional information, see the Global Shipping Programme terms and conditions - opens in a new window or tab Learn more - opens in a new window or tab All Rights Reserved. User Agreement, Privacy, Cookies and AdChoice Norton Secured - powered by Verisign. And by having access to our ebooks online or by storing it on your computer, you have convenient answers with Heathkit Hd 1250 Manual. To get started finding Heathkit Hd 1250 Manual, you are right to find our website which has a comprehensive collection of manuals listed. Our library is the biggest of these that have literally hundreds of thousands of different products represented. I get my most wanted eBook Many thanks If there is a survey it only takes 5 minutes, try any survey which works for you. HEATKIT Mega Collection.
PDF DOCUMENT Riceverete un link da cui potrete scaricare tutti i manuali (I will send you a link. Il link sara sempre attivo, potrete accedere tutte le volte che volete. ( I will send you a link; you can download the documents of all the models of the following list. As soon as possible during holidays.L'acquirente paga le spese di spedizione., Le spese di spedizione saranno pagate da:: Acquirente, Marca: HEATHKIT, Marca compatibile: HEATHKIT, Tipo: SERVICE MANUAL, MPN: Non applicabile Super high amount of views. 8 sold, 2 available. More Super high amount of views. 8 sold, 2 available. You are the light of the world. Si e verificato un problema. Vedi il carrello per i dettagli. I have not attempted to activate the unit. The ” Ulteriori informazioni - si apre in una nuova finestra o scheda L'importo e soggetto a modifica fino al momento del pagamento. Per ulteriori informazioni, vedi i termini e le condizioni del Programma di spedizione internazionale - si apre in una nuova finestra o scheda L'importo e soggetto a modifica fino al momento del pagamento. Se sei residente in uno stato membro dell'Unione Europea eccetto il Regno Unito, non puoi recuperare l'IVA per questo oggetto. Per ulteriori informazioni, vedi i termini e le condizioni del Programma di spedizione internazionale - si apre in una nuova finestra o scheda Ulteriori informazioni - si apre in una nuova finestra o scheda Ulteriori informazioni - si apre in una nuova finestra o scheda Ulteriori informazioni - si apre in una nuova finestra o scheda Ulteriori informazioni - si apre in una nuova finestra o scheda Ulteriori informazioni - si apre in una nuova finestra o scheda Questo include oggetti con difetti che ne impediscono il regolare funzionamento, oggetti che devono essere riparati oppure oggetti che non sono dotati di componenti essenziali. Per ulteriori dettagli vedi l'inserzione. I have not attempted to activate the unit. The battery has been removed to prevent damage.
” Contatta il venditore - si apre in una nuova finestra o scheda e chiedi la spedizione per il tuo indirizzo. Inserisci un CAP valido. Inserisci un numero inferiore o uguale a 1. Per le transazioni idonee, sei coperto dal programma Garanzia cliente eBay se ricevi un oggetto non conforme alla descrizione. Tutti i diritti riservati. Accordo per gli utenti, Privacy, Cookie e AdChoice Norton Secured - Offerto da Verisign. Sign in to see your user information Something went wrong. View basket for details. Please add me to your list of favorite sellers and visit often. Thank you for your business. Store-Designer 2.02018-07-29-09. Add my Store to your Favorites and receive my email newsletters about new items and special promotions. General Interest This Shop currently has 0 listings. You can come back later or check other Shops. All Rights Reserved. Is there anything which could come loose after all these years - behind the face panel. I think I have a schematic if needed. ( Or I ask Mrs Google for it ) The resin tends to absorb moisture over the years and swells to the point where it interferes with the movement. It looks as there is something loose in the meter itself - even sight pressure on the back of it makes it swing wildly.I am thinking ADDING LED to the meter - not sure if in parallel or serial. I am still looking for schematic. The Group moderators are responsible for maintaining their community and can address these issues. This includes: harm to minors, violence or threats, harassment or privacy invasion, impersonation or misrepresentation, fraud or phishing. Subject of the new topic. Create an account in a few clicks or log in to continue. SM0VPO Forum Hamradio and electronics help and advice for visitors to Harry's Homebrew Homepage www.sm0vpo.com Home Search Search Query Display results as: Posts Topics Advanced Search Register Log in Please put your test circuit on your pages ASAP. Thanks. VBR Ivan Hi Ivan, Sorry for the delay.
The circuit is really simple. Resistive voltage divider with 10nf from center to ground. Voltage is about 200mV. Tunnel diode from the 200mV to the hot end of any tuned circuit. If you use coaxial cable then you must short-circuit the other end. On my training courses I show this on a drum of cable, measure the frequency and calculate the length. As there is interest for it I will photograph it and publish it. It is really crude. I used a block-connector to assemble it. The diode and ground connections are to a couple of aligator clips. Therefore it is really wideband. Sorry!! The heathkit Tunnel Dipper looks really interesting. It would be interesting to replicate the same technology using modern components. I once experimented with the old AEY11 and AEY12 TDs (available from Henrys Radio Ltd, 202 Edgeware street London) and I found they would oscillate with ANY coil: I used a mains transformer primary and had about 800Hz. I relay coil and got 10kHz, a ferrite loopstick antenna from a transistor radio and had 600kHz to 1.8MHz. I even had a bit of coaxial cable oscillating at 1.7MHz and 10MHz, and I still do that today on some of my deeper RF courses. I once used an insulated strip of copper on a copper-clad board and generated 880MHz, and that was picked up on an NMT telephone. It was exactly the same circuit. The circuit I use today is a bit of block-connector with two crocodile clips so i can couple it to anything. So if you want to know the resonant frequency of an aluminium-foil-clad christmas tree, then this is the thing to use. Perhaps I could make a project of it for HHH. I have a bunch of TDs at home in Sweden, begging for more experimantation. I wonder if I could make a high-gain IF amplifier. It is always nice to read about perriferal information regarding these things. The TD got the cable to resonate and I just measured the frequency - 1.7MHz. Velocity factor known to be about 0.8, so I had 35 metres on the drum.
I shall have to study the links a bit more, especially the OpAmp circuits. As I always say, the people on this forum seem to know everything:-) If they don't know it then they find it. BR Harry The op-amp can be exchanged for the lambda diode; it just need the resonance circuit to go into chaotic oscillation.A chaos generator:-) I would be interested to see the applications for such a device. I can see a random-number generator application. One cannot help but wonder just what Chua was trying to achieve (like the first person to milk a cow:-) I shall have to study the links a bit more, especially the OpAmp circuits. Invented by Leon Chua in 1983, it and is very widely used as a standard example of chaotic oscillation. It consists of one inductor (L), two capacitors (C1 and C2), one resistor (R), and a nonlinear negative resistance (NR), called Chua's diode. Or Lissajou curves (two sinusoidal oscillator) modulated by low frequency chaos each. Shorted each end with a 1.5cm Dia. loop of wire. I then connected the Tunnel Diode to one loop, and it oscillated very strongly. The frequency is surprisingly stable, even when the wire was coilled up. 2 - I have to get rid of stuff that I have no further space for. One of them is a homebrew 145MHz, 4-element Yagi (it had 8 elements but I cannot put it together in this little apartment). It goes in the bin this weekend. Tonight I connected the Tunnel diode inside the coax connector block: the feed point of the Yagi. That, too, began to oscillate immediately, and it was quite strong. Touching the elements, or putting my hand close to them, did move the frequency slightly. I know that anything with resonance can be made oscillate, and this could open up all manner of project ideas. How about a resonant cavity built into a galvanised dust-bin. How about a VFO made with a bit of copper pipe, center resonator rod, and a mechanical piston to control the frequency.
